Configuration Tool menus

The BrightQ-Pro Configuration Tool is the main graphical administrative interface. Launch it from the installed desktop menu or run:

codehost-config

The interface exposes a configured-printers list and menu options for registering and licensing, adding/removing queues, printing test pages, selecting defaults, viewing jobs, and reviewing printer status.

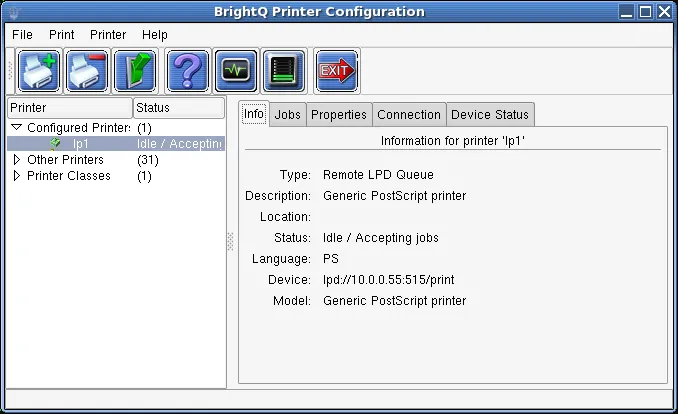

Configuration Tool showing configured printers and the Info tab.

File → Options

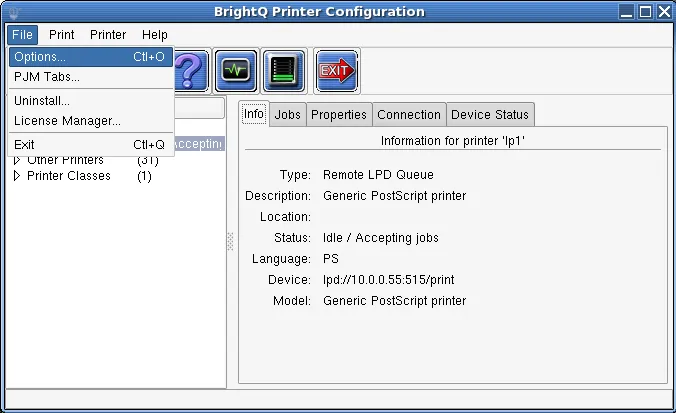

Configuration Tool File menu with Options, PJM Tabs, Uninstall, and License Manager entries.

The available options depend on the configured print system:

• Global: SNMP timeout and monitoring interval.
• CUPS: Server location, port, encryption policy, daemon restart, filter capabilities for other queues, and related paths.
• BSD / System V: Printcap or printers database paths, remote LPD server, daemon restart and filter behavior.
• AIX Native: Platform-specific spooler configuration.

Printing-system option dialogs

The screenshots show example configurations. Choose values appropriate to your printing system.

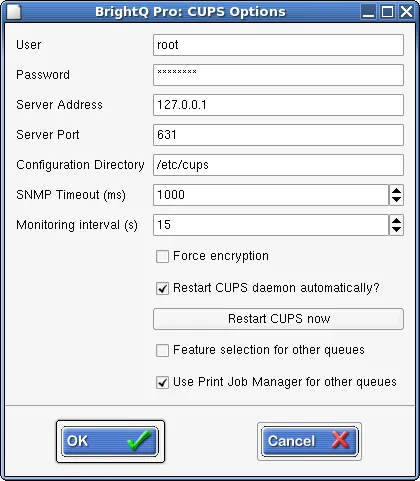

CUPS Options dialog showing server, encryption, monitoring, and filter controls.

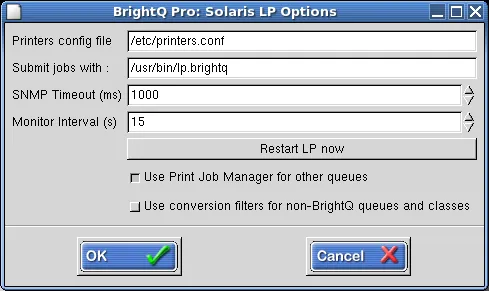

Solaris LP Options dialog showing printers configuration, job submission, and monitoring fields.

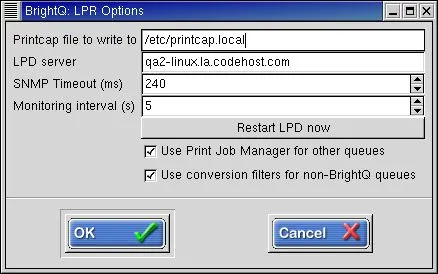

LPR Options dialog with printcap, LPD server, monitoring, and filter settings.

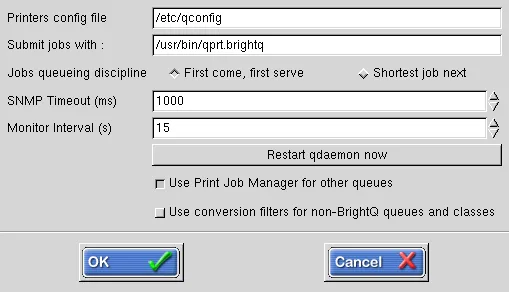

AIX options showing the printers configuration file, job submission command, and queue discipline.

PJM tab visibility

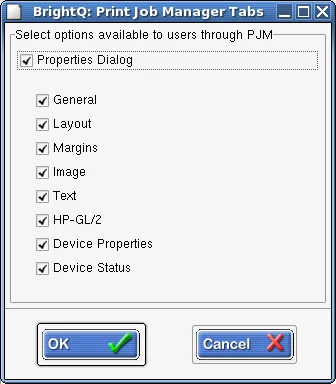

Print Job Manager Tabs dialog with controls for showing or hiding properties tabs.

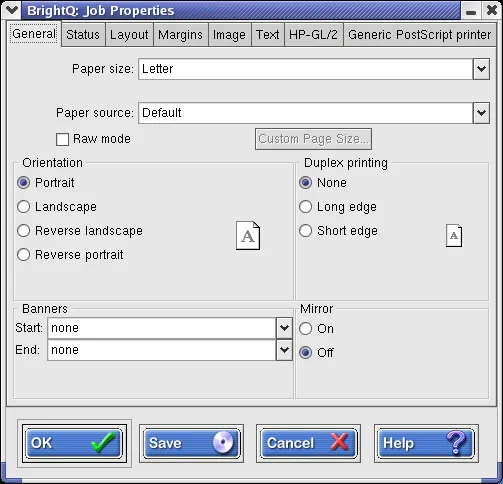

Job Properties dialog illustrating the tabs selected in the Configuration Tool.

Printer menu

The printer menu supports Add Printer (Expert), Printer Installation Wizard, Add Class (where supported), Import/Export, Duplicate, Remove and Set as System Default.

Queue tabs

• Info: Queue name, state, type, language, URI and model.
• Jobs: Pending/processing/completed jobs, owner, job ID and priority.
• Properties: Driver- and model-dependent options.
• Connection: Transport details and filter/PJM behavior.
• Device Status: Printer alerts and optional status monitoring.

Use queue management for routine operations, and manual setup to configure new printers.
